| الدفع نوع: | L/C,T/T,Paypal |
| إنكوترم: | FOB,EXW,DDP,Express Delivery |
| أدني كمية الطلب: | 1 Piece/Pieces |
| نقل: | Ocean,Express,Air,Others |
الظل:
Rated Flow: 5 L/S
Jet Radius: 33 m
Installation Method: Hoisting
Voltage/power Consumption: AC220V/Monitor: 1W, Scan: 50w
Jet Pattern: Column
Communication Method: RS485 bus system
Rated Working Pressure: 0.6 MPa
| بيع الوحدات | : | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
المعايير الفنية:
|
Specifications |
ZDMS0.6 / 5S-RS30 |
ZDMS0.6 / 5S-RS30ZDMS0.6 / 10S-RS35A |
ZDMS0.6 / 10S-RS35A |
|
|
Rated working pressure (MPa) |
0.6 |
0.6 |
0.6 |
|
|
Maximum working pressure (MPa) |
1.0 |
1.0 |
1.0 |
|
|
Rated flow (L/s) |
5 | 5 |
10 |
|
|
Maximum protection radius (m) |
30 |
33 |
35 |
|
|
Jet radius (m) |
33 |
37 | 39 | |
|
Monitoring radius (m) |
50 | 50 | 50 | |
|
Positioning time(s) |
≤30 |
≤30 |
≤30 |
|
|
Horizontal rotation angle (°) |
360 |
360 |
360 |
|
|
Minimum range of pitch angle (°) |
-90~+30 |
-90~+30 |
-90~+30 |
|
|
Connection size |
DN25 |
DN32 |
DN32 |
|
|
Installation method |
Hoisting |
|||
|
Voltage/power consumption |
AC220V/Monitor: 1W, Scan: 50w |
|||
|
Communication method |
RS485 bus system |
|||
|
Jet pattern |
Column | |||

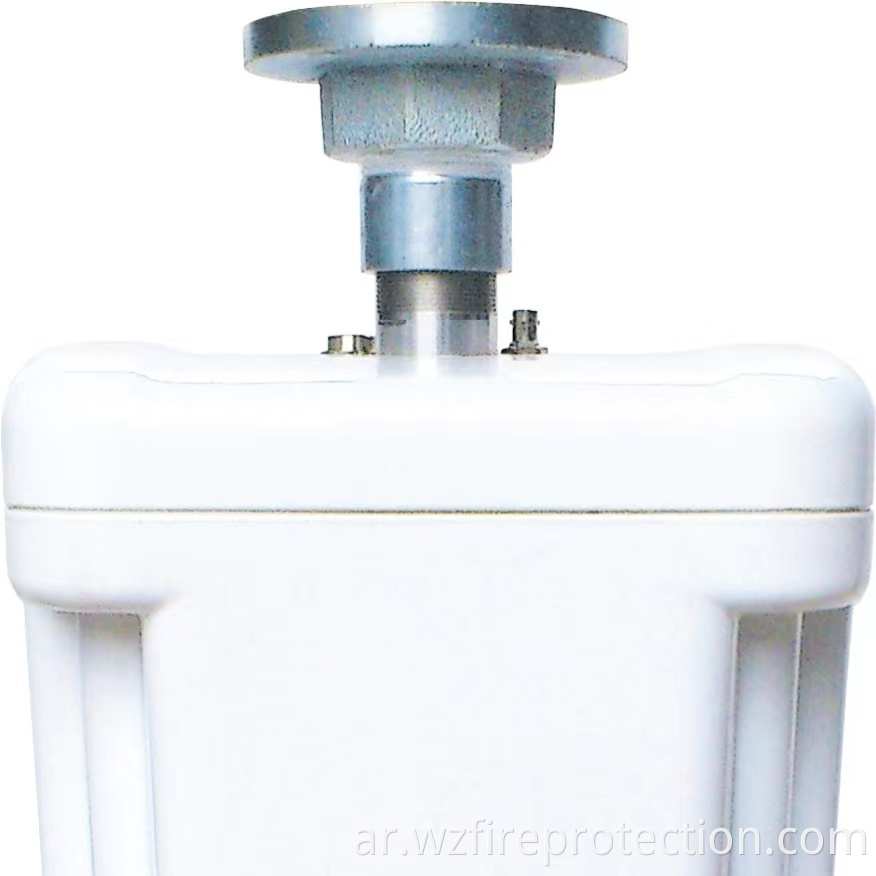

صورة مفصلة ：
